Comprehensive Guide To The Subaru Thermo Control Valve In 2026

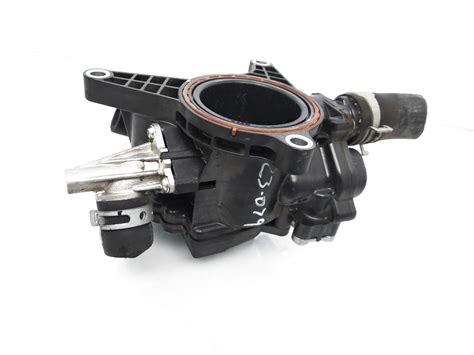

Modern Subaru vehicles equipped with the FB20, FB25, and FA-series direct-injection engines utilize an electronically managed coolant routing architecture designed to accelerate warm-up times, reduce friction, and optimize emissions. At the center of this advanced cooling topology is the thermal control valve assembly, often referred to by technicians simply as the thermo control valve. Unlike traditional wax-pellet thermostats that open and close strictly based on coolant temperature, the Subaru thermo control valve is a motorized multi-way valve controlled directly by the Engine Control Module (ECM). As vehicle reliability benchmarks evolve through 2026, understanding the diagnostics, failure symptoms, and replacement protocols for this critical component remains essential for both DIY enthusiasts and professional technicians maintaining modern Subaru Impreza, Crosstrek, Forester, and Outback models.
Engineering Architecture and Operating Principles of Subaru Thermal Management
The implementation of electronically controlled coolant management marks a significant departure from legacy mechanical cooling systems. In older configurations, a mechanical thermostat remained closed until the engine coolant reached a specific threshold, forcing coolant through a bypass loop until warmup. The Subaru thermo control valve integrates multiple routing ports into a single housing, allowing the ECM to dynamically modulate coolant flow between the engine block, cylinder heads, heater core, and radiator based on operating parameters such as engine load, ambient temperature, vehicle speed, and oil temperature.
By restricting coolant flow completely during cold startup, the engine oil and combustion chambers reach their optimal operating temperature much faster. This targeted thermal management significantly reduces internal friction and hydrocarbon emissions during the critical first few minutes of driving. Once operational thresholds are met, the ECM commands a DC stepping motor within the valve assembly to precisely index internal rotors or gates, opening specific circuits to maintain strict thermal equilibrium across varying driving conditions.
Common Symptoms and Diagnostic Trouble Codes (DTCs)
Because the thermo control valve assembly relies on both electromechanical actuators and internal plastic or composite gear mechanisms, component degradation inevitably triggers diagnostic alerts. When the valve sticks open, the engine fails to reach operating temperature within the pre-programmed time window, resulting in poor cabin heater performance and reduced fuel efficiency. Conversely, if the valve sticks closed, severe overheating can occur rapidly, risking catastrophic head gasket failure or warped aluminum cylinder heads.
Modern Subaru onboard diagnostics monitor the circuit integrity and the correlation between coolant temperature sensors and valve position commands. Technicians troubleshooting these systems in 2026 typically encounter specific Diagnostic Trouble Codes related to thermal management performance.
| Diagnostic Trouble Code | Primary Description | Common Root Cause | Recommended Action |
|---|---|---|---|
| P2681 | Engine Coolant Bypass Valve "A" Control Circuit/Open | Electrical disconnection, harness chaffing, or internal motor failure | Inspect connector terminals for corrosion; test circuit resistance |
| P2682 | Engine Coolant Bypass Valve "A" Control Circuit Low | Short to ground in the signal or power circuit | Trace wiring harness from ECM to valve assembly for chafing |
| P2683 | Engine Coolant Bypass Valve "A" Control Circuit High | Short to power or internal actuator controller failure | Verify reference voltage and ECM output signals |
| P0128 | Coolant Thermostat Below Thermostat Regulating Temperature | Valve stuck in the open position or thermal degradation | Perform active commanded test via OBD2 scanner; replace valve assembly |
Propane Safety Control Valve for Low Pressure Heaters and Grills with ...
Step-by-Step Replacement Workflow for Subaru Thermo Control Valve
Replacing the thermo control valve on modern Subaru engines requires patience and careful workspace organization due to the dense packaging layout beneath the intake manifold or near the rear of the engine block depending on the specific model variant. Prior to beginning service, ensure the engine has cooled completely to prevent severe thermal burns and coolant spray.
Safety Warning: Always relieve system pressure slowly by loosening the coolant reservoir cap before opening the primary cooling system components. Wear protective eyewear and gloves when handling ethylene glycol or long-life silicate coolants.
- Disconnect Power Sources: Always disconnect the negative battery terminal to prevent accidental electrical shorts while working around the alternator and wiring harnesses.
- Drain the Cooling System: Open the radiator drain cock located at the lower corner of the radiator and remove the coolant reservoir cap to facilitate complete drainage. Catch the fluid in a clean, approved container for proper recycling.
- Remove Interferences: Depending on whether you are working on an FB20 Crosstrek or an FA24 turbocharged engine, remove the upper intake manifold, air intake ducting, or intercooler piping to gain clear line-of-sight and physical access to the thermo control valve housing.
- Disconnect Electrical and Coolant Lines: Unplug the multi-pin electrical connector from the valve actuator motor. Loosen the spring-type hose clamps and carefully slide coolant hoses off their respective nipples. Twisting the hoses gently with a non-marring hose removal tool prevents tearing old rubber.
- Extract the Old Assembly: Remove the mounting bolts securing the thermo control valve housing to the engine block or timing cover. Pull the assembly straight out to avoid bending internal alignment pins.
- Install the New Component: Clean the mounting mating surface thoroughly. Install a new O-ring gasket lubricated lightly with fresh coolant or clean engine oil. Secure the new valve assembly and torque mounting fasteners to factory specifications.
- Reassemble and Vacuum Fill: Reconnect all coolant hoses, secure the spring clamps in their original factory paint-mark positions, plug in the electrical harness, and reinstall any removed intake components. Use a professional vacuum cooling system filler to eliminate air pockets, then top off with Subaru Super Coolant.
Preventive Maintenance and Component Longevity Strategies
Preventing premature failure of the Subaru thermo control valve centers heavily on proper coolant maintenance. Subaru specifies long-life blue coolant that inhibits internal electrolysis and corrosion. Neglecting regular coolant flushes allows mineral deposits and particulate debris to accumulate inside the delicate mechanical pathways of the multi-way valve, causing the internal gear mechanism to bind or strip its teeth.
Vehicle owners operating in extreme climates—such as sub-zero winter environments or harsh desert heat—put additional thermal stress on electronic actuators. Mechanics recommend inspecting the wiring harness conduit where it passes near hot exhaust components or sharp bracket edges, as heat-induced insulation hardening frequently leads to intermittent electrical faults mimicking internal valve failure.
Frequently Asked Questions Regarding Subaru Thermal Management
Can I drive my Subaru with a failed thermo control valve?
Driving with a valve stuck closed will rapidly lead to engine overheating and catastrophic internal damage; therefore, it must not be driven. If the valve is stuck open, the engine will merely run cold, but you should still replace it promptly to prevent oil sludge accumulation and excessive emissions.
Where is the thermo control valve located on an FB25 engine?
On most modern non-turbo FB-series engines, the thermo control valve assembly is positioned near the top front of the engine block underneath the intake manifold runner assembly, connected to several distinct rubber coolant hoses.
Are aftermarket thermo control valves reliable compared to OEM parts?
While aftermarket options exist, OE Subaru replacement valves utilize factory calibration maps and high-grade actuator motors that integrate seamlessly with the ECM. Using Genuine Subaru parts prevents lingering calibration mismatch codes and ensures long-term durability.
How long does a Subaru thermo control valve typically last?
Under normal operating conditions and with regular coolant flushes every 30,000 to 60,000 miles, the factory assembly frequently lasts between 100,000 and 150,000 miles before experiencing mechanical wear.
Will replacing the valve require an ECM relearn procedure?
In most cases, replacing the thermo control valve does not require a complex computer flash; however, clearing active Diagnostic Trouble Codes using an advanced OBD2 scan tool is necessary to reset the engine management monitors.
